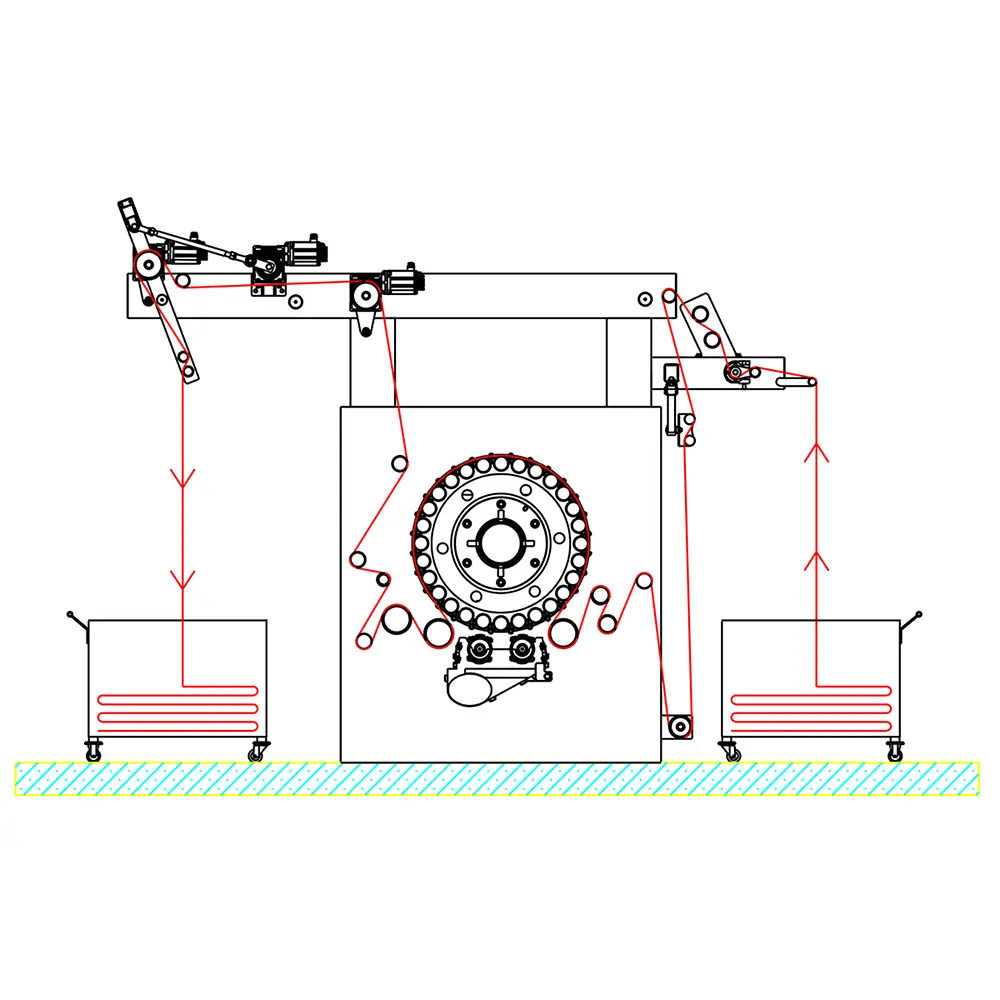

Single Drum Raising Machine

The Single Drum Raising Machine is designed for high-efficiency surface treatment of woven and knitted fabrics made from pure cotton, polyester blends, and chemical fibers. Featuring 28 precision raising rollers, it ensures uniform and consistent raising effects across a wide range of fabric types. Integrated with an electrostatic eliminator and dual cloth spreading systems, the machine provides stable operation and superior fabric handling. Ideal for textile mills seeking quality enhancement and process reliability in fabric finishing.

Description

Suitable for raising treatment of pure cotton, polyester cotton, and chemical fiber fabrics



Main Specifications

Item Specification
Main Frame Size 5000×2050×2800mm
Required Installation Space 7000×7000×4000mm
Working Width 2200mm
Machine Speed 5–45 m/min
Number of Raising Rollers 28 pcs
Electrostatic Eliminator 1 set
Cloth Spreading Device 2 groups
Voltage 380V / 40Hz
Total Power 57 kW
Practical Power 22 kW
