Double Drum Raising Machine

The Double Drum Raising Machine is a high-efficiency and precision fabric surface treatment equipment, widely used for the raising process of pure cotton, polyester-cotton, and chemical fiber fabrics. Featuring a dual-drum structure with 56 raising rollers, it ensures uniform and soft surface finishing, significantly enhancing the hand feel and added value of the fabric.

Description

Suitable for the raising treatment of pure cotton, polyester cotton, and chemical fiber fabrics



Technical Specifications

  • Control System:PLC + Dual Touch Screen
  • Inverter Control:Full inverter, multi-drive independent control
  • Raising Rollers:56 (28 × 2)
  • Raising Roller Diameter:Φ70 mm
  • Production Speed:4–50 m/min
  • Working Width:2000 / 2200 / 2500 mm
  • Drive Mode:Gear reducer + V-belt
  • Installed Power:80 kW
  • Drum Speed:2–120 rpm
  • Process Memory:Up to 100 programs
  • Automatic Fabric Feeding:Yes
  • Tension Control:Yes

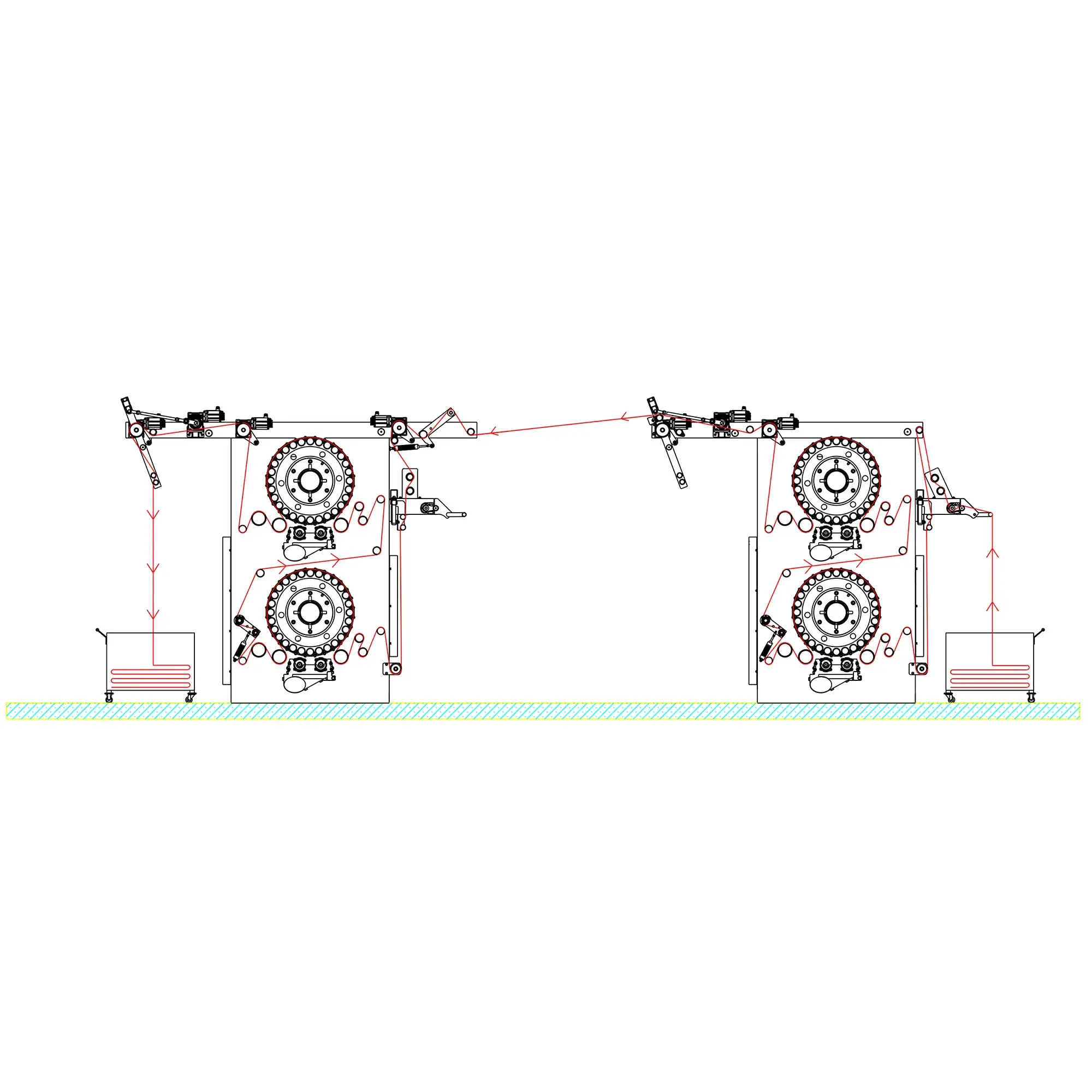

  • Multi-machine Linkage:Supported
